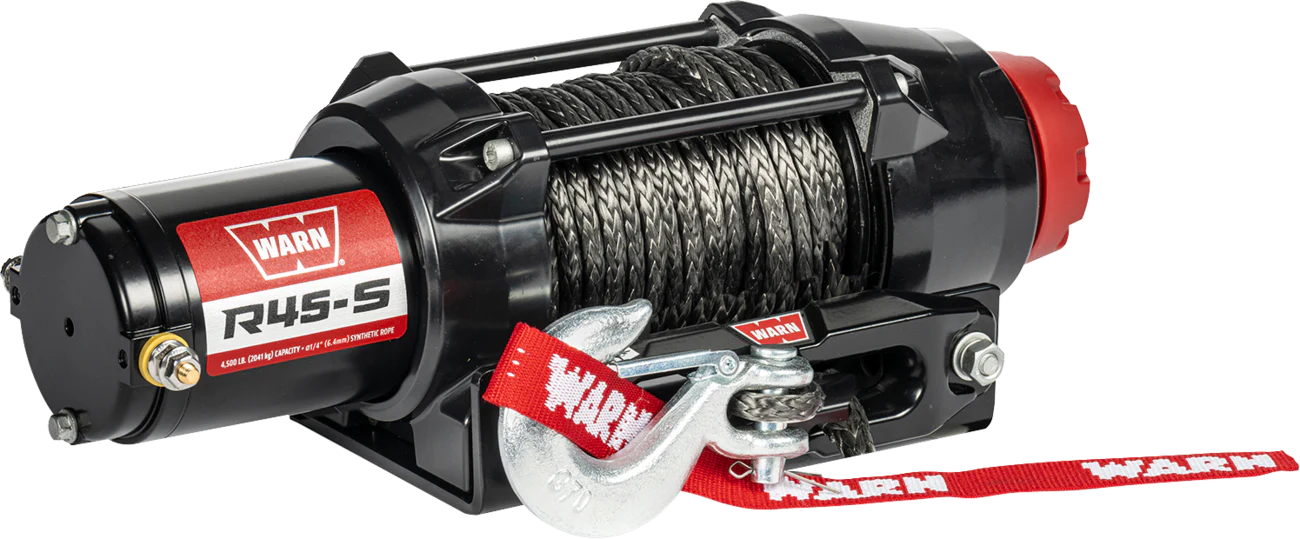

WARN R45-S Winch - Synthetic Rope - 50' 110040

R45-S Winch - Synthetic Rope - 50'

Features

• Affordable performance is designed for first-time winch users or casual riders who need reliable recovery
• Durable all-metal gear housing and a sleek, compact profile design to complement the machine
• Rigorously tested and validated to meet or exceed Warn's leading durability and performance standards
• R-series winch has 50 feet of rope with a standard hook
• Fairlead and fairlead plate
• Dash-mountd rocker switch with wired remote
• Remote socket harness
• External, remotely mounted contactor and wiring kit
• Also includes manual, hardware kit, and a Warn sticker
• Zinc plated fasteners

Specifications:

Rated line pull (single line)	R45, R45-S, 4,500lbs (2041kg)
Motor:	12V DC permanent magnet
Sealing:	IP67 rated waterproof
Gear train:	R35, R35-S, R45, R45-S, R60-S: 3-stage planetary
Fasteners:	Zinc plated
Rope:	R45-S, R60-S: 50’ x 1/4” (15m x 6.3mm) synthetic
Hook:	Zinc plated
Fairlead:	R25-S, R35-S, R45-S, R60-S: cast aluminum hawse
Primary Controls	R45, R45-S, R60-S: dash-mounted rocker switch
Remote control:	R45, R45-S, R60-S: hand-held corded remote included
Brake:	R35, R35-S, R45, R-45-S, R60-S: mechanical brake
Warranty:	5 years mechanical, 3 years electrical
Dimensions:	R45, R45-S: length: 14.6” (371mm), height: 4.7” (120mm), width: 4.6” (117mm)
Mounting Bolt Pattern:	R45, R45-S, R60-S: 3” x 6.59” (76.2mm x 167.4mm)
