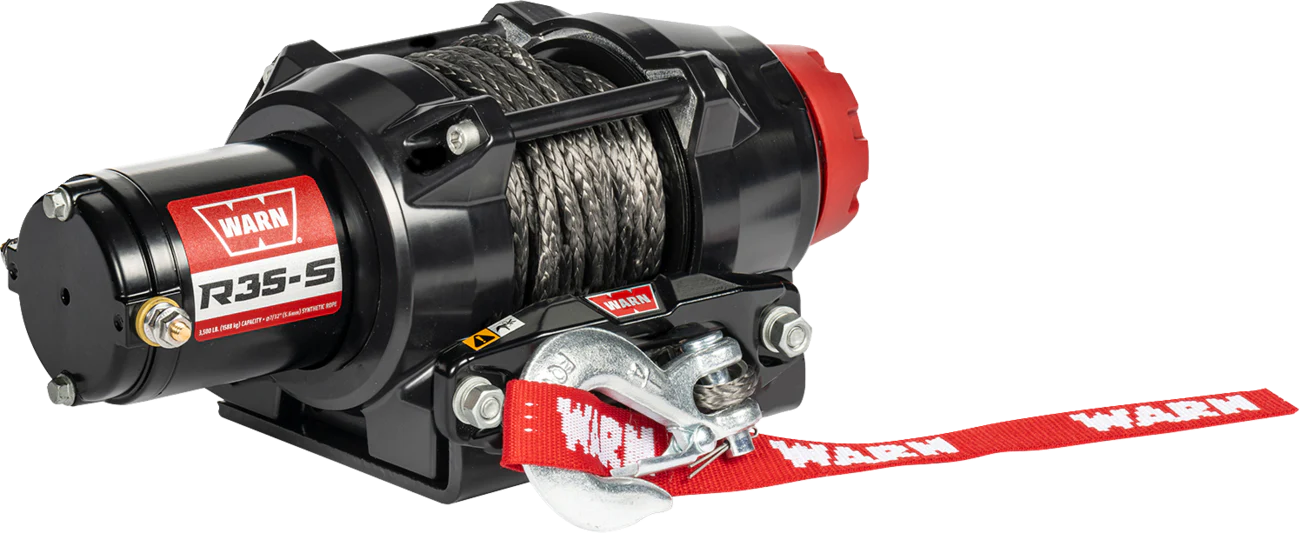

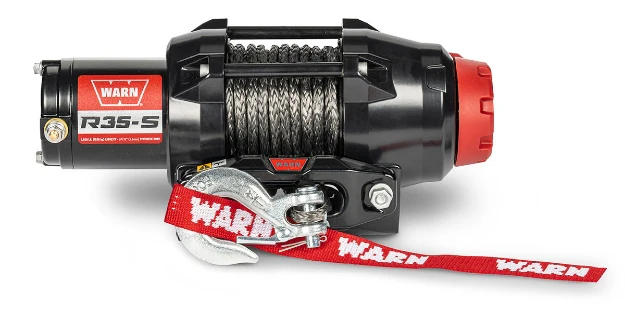

WARN R35-S Winch - Synthetic Rope - 50' 110030

R35-S Winch - Synthetic Rope - 50'

Features

• Affordable performance is designed for first-time winch users or casual riders who need reliable recovery
• Durable all-metal gear housing and a sleek, compact profile design to complement the machine
• Rigorously tested and validated to meet or exceed Warn's leading durability and performance standards
• R-series winch has 50 feet of rope with a standard hook
• Fairlead and fairlead plate
• Handlebar switch and dash-mounted rocker switch
• Remote socket harness
• External, remotely mounted contactor and wiring kit
• Also includes manual, hardware kit, and a Warn sticker
• Zinc plated fasteners

Specifications

Rated line pull (single line)	R35, R35-S, 3,500lbs (1588kg)
Motor:	12V DC permanent magnet
Sealing:	IP67 rated waterproof
Gear train:	R35, R35-S, R45, R45-S, R60-S: 3-stage planetary
Fasteners:	Zinc plated
Rope:	R25-S, R35-S: 50’ x 3/16” (15m x 4.8mm) synthetic;
Hook:	Zinc plated
Fairlead:	R25-S, R35-S, R45-S, R60-S: cast aluminum hawse
Primary Controls	R35, R35-S: handle-bar mounted rocker switch; dash-mounted rocker switch; remote socket harness
Remote control:	R25, R25-S, R35, R35-S: sold separately
Brake:	R35, R35-S, R45, R-45-S, R60-S: mechanical brake
Warranty:	5 years mechanical, 3 years electrical
Dimensions:	R35, R35-S: length: 12.3” (312mm), height: 4.7” (120mm), width: 4.6” (117mm)
Mounting Bolt Pattern:	R25, R25-S, R35, R35-S: 3” x 4.9” (76.2mm x 167.4mm)
