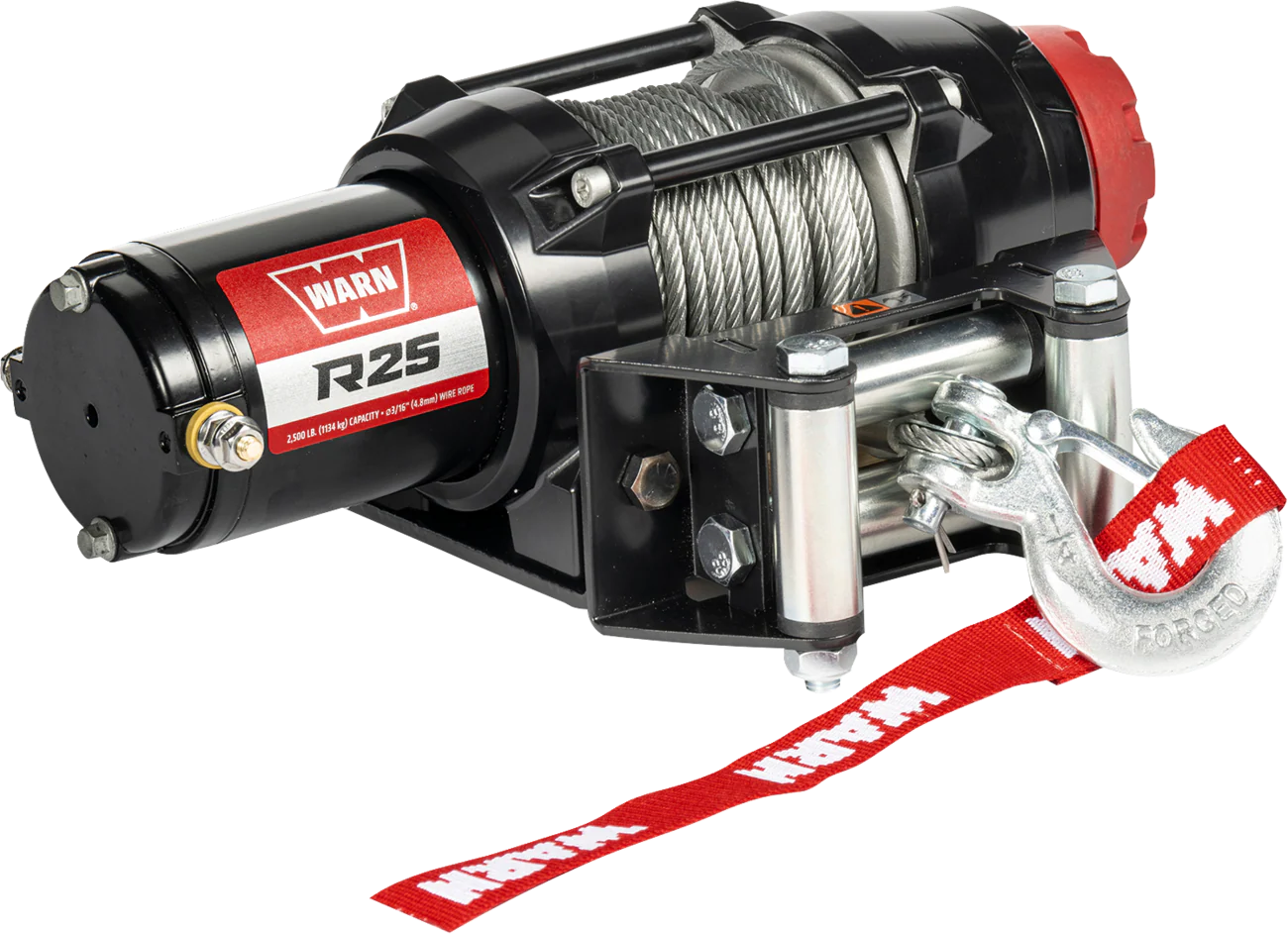

WARN R25 Winch - Wire Rope - 50' 110025

R25 Winch - Wire Rope - 50'

Features

• Affordable performance is designed for first-time winch users or casual riders who need reliable recovery
• Durable all-metal gear housing and a sleek, compact profile design to complement the machine
• Rigorously tested and validated to meet or exceed Warn's leading durability and performance standards
• R-series winch has 50 feet of rope with a standard hook
• Fairlead and fairlead plate
• Handlebar switch control
• External, remotely mounted contactor and wiring kit
• Also includes manual, hardware kit, and a Warn sticker
• Zinc plated fasteners

Specifications



Rated line pull (single line)	R-25, R25-S: 2,500lbs (1134kg)
Motor:	12V DC permanent magnet
Sealing:	IP67 rated waterproof
Gear train:	R25, R25-S: differential planetary
Fasteners:	Zinc plated
Rope:	R25, R35: 50’ x 3/16” (15m x 4.8mm) steel
Hook:	Zinc plated
Fairlead:	R25, R35, R45: roller fairlead
Primary Controls	R25, R25-S: handle-bar mounted rocker switch
Remote control:	R25, R25-S, R35, R35-S: sold separately
Brake:	R25, R25-S: dynamic brake;
Warranty:	5 years mechanical, 3 years electrical
Dimensions:	R25, R25-S: length: 12.4” (315mm), height: 4.5” (114mm), width: 4.0” (102mm)
Mounting Bolt Pattern:	R25, R25-S, R35, R35-S: 3” x 4.9” (76.2mm x 167.4mm)
